Description

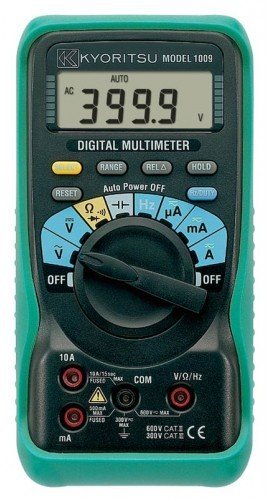

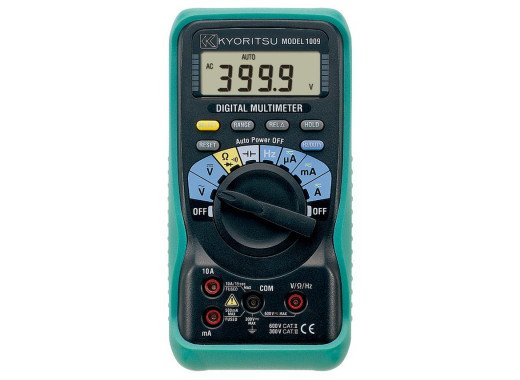

Kyoritsu 1009 Multimeter
Details
The Kyoritsu 1009 is a simple but versatile digital multimeter which can measure up to 600V/10A. This multimeter features the most frequently used measurement functions such as; AC/DC voltage and current, resistance, continuity (buzzer), frequency and even duty cycle.
The meter is covered by a firm rubber bezel to make it suitable for use under rough conditions. In addition to this, it features an easy-to-use rotary knob to select the measurement functions. The different measurement ranges can either be selected automatically, or manually by the click of a button. Furthermore, relative measurements and a data-hold function are also included. To prevent the battery from draining if the user forgets to shut the device off, it is equipped with an auto power-off feature.
Specifications
| Voltage DC/AC | 400mV – 600V |
| Current DC/AC | 400µA – 10A |
| Resistance | 400Ω – 40 MΩ |
| Continuity buzzer | sound below 50Ω |
| Capacitance | 40nF – 100µF |
| Frequency | 5.12 Hz – 10 MHz |
| True RMS |
No
|
| Display | 4000 counts |
| Safety category | CAT IV 300V |
| Power Source | 2x R6P(AA) batteries |
| Dimensions | 155x75x33 mm |
| Weight | 260g |
Accessories
The Kyoritsu 1009 comes with:
- Test leads
- Fuse
- Batteries
Pros and cons
- 4000 counts LCD display
- Automatic power-off
- Relative measurements possible
- Data-hold function
