Description
DIGITAL INCLINOMETER LM320B UNI-T
LM320 series digital angle meters are used to measure the precise angle in a variety of applications, designed with 2/4 sided magnetic bottom, and two-side laser design (LM320B) makes the measurement more accurate and convenient! This series can be used in manufacturing, home decoration/DIY, and other fields requiring accurate angle measurements.
FEATURES
Certificates: CE, UKCA
- Relative / absolute measurement
- 360°comprehensive measurement
- Data hold
- Portable and lightweight

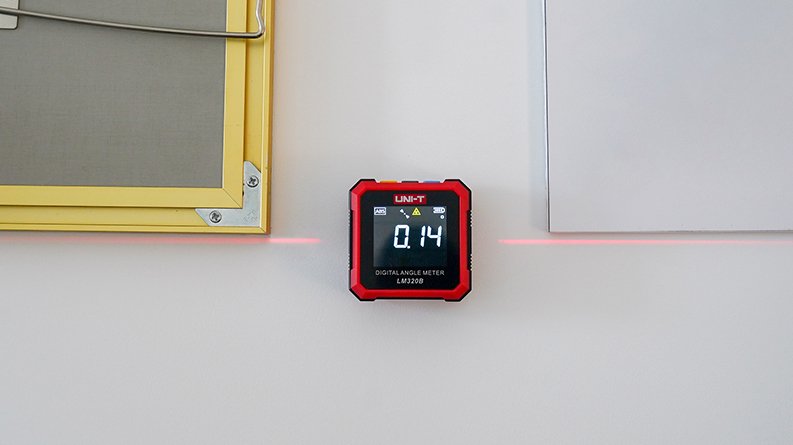

- Unique laser design
| Category | Specification (LM320B) |
|---|---|
| Measurement Range | 4 × 90° (i.e. full 360°) |
| Accuracy | ±0.2° |
| Resolution | 0.01° |
| Measurement Modes | Absolute and relative angle measurement |
| Laser Indicator | Dual‑side laser beams for alignment |

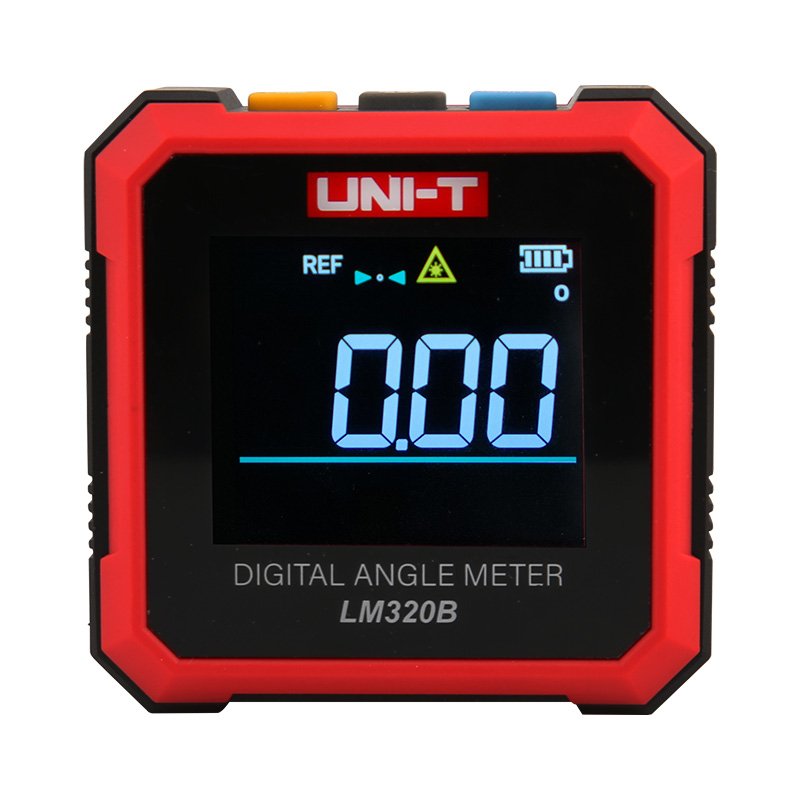

| Display Type | EBTN (electroluminescent backlit) color display |
| Magnetic Base | Magnets on all four sides |
| Battery Type | Rechargeable 3.7 V lithium battery (~300 mAh) via USB‑C |
| Battery Life | Approx. 2 hours continuous use |
| Auto Power Off | Yes (after ~5 minutes of inactivity) |
| Low Battery Indicator | Yes |
| Angle Lock Function | Yes |
| Display Orientation | Auto‑flip screen when rotated |
| Operating Temperature | 0 °C to 50 °C; ≤ 80 % RH |
| Dimensions | Approx. 62 × 62 × 32 mm |
| Weight | Approx. 123 g |
| Material & Build | Aluminum alloy housing; compact and lightweight |
| Certifications | CE, UKCA, RoHS compliant |
