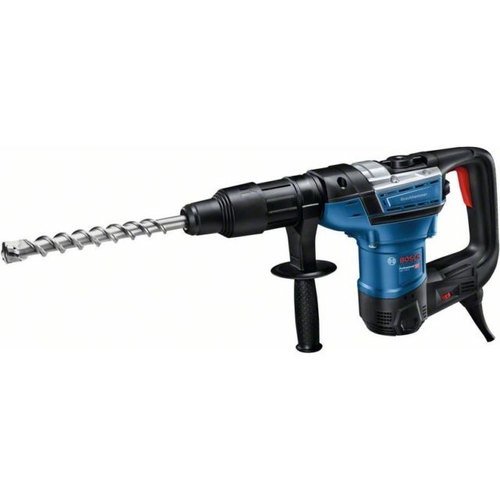

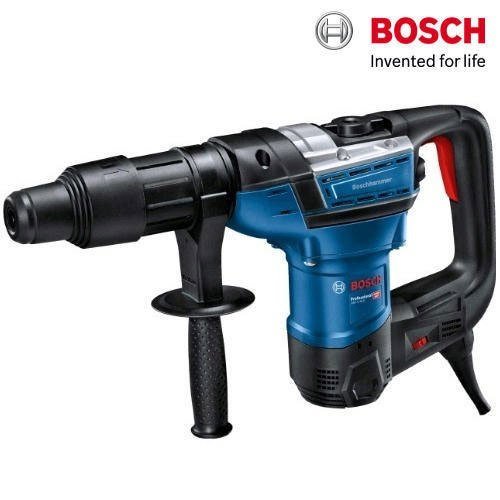

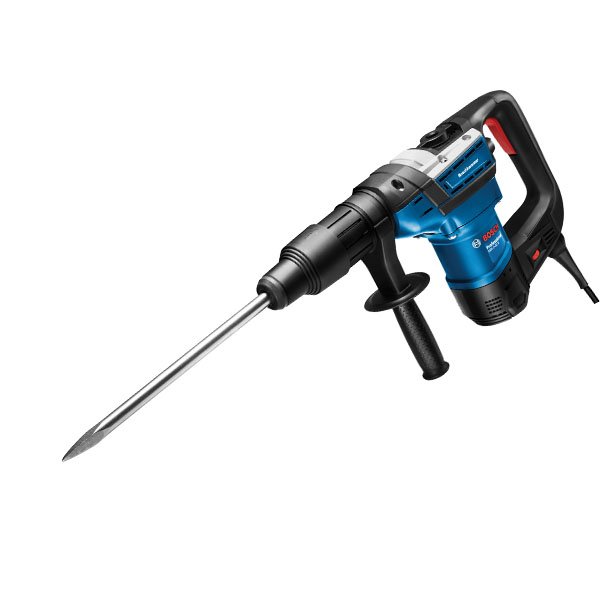

Bosch Rotary Hammer GBH 5-40D

Description

Technical data

Additional data
Rated input power*	1,100 W
Impact energy*	8.5 J
Impact rate at rated speed	1,500 – 2,900 bpm
Rated speed	170 – 340 rpm
Weight	6.8 kg
Tool holder	SDS max

Drilling range
Drilling dia. concrete, hammer drill bits*	12 – 40 mm
Drilling dia. concrete, breakthrough drill bits	45 – 55 mm
Drilling diameter in concrete with core cutters	40 – 90 mm
Max. drilling diameter masonry, core cutters	90 mm
Max. drilling diameter concrete	40 mm
Opt. appl. range concrete, hammer drill bits	18 – 32 mm

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.

Advantages

The powerful hammer with fastest drilling progress in its class



• Fastest drilling progress – 30% faster than its predecessor
• High material removal rate – 50% more impact energy than existing GBH 5-38 D
• Perfect handling – well balanced tool for all applications

Functions

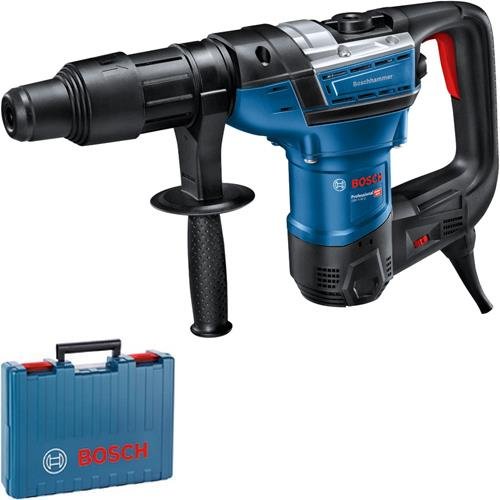

What’s Included in this Packagein carrying case with auxiliary handleOrder number: 0 611 269 000

• Auxiliary handle
• Carrying case
• Cleaning cloth
• Grease tube
• Strap

The GBH 5-40 D in action!
