Description
- Sliding function for wide work pieces.
- Compact light weight, suitable also for one-handed transport
- Robust die-cast aluminium design for the highest demands
- Easy transport thanks to ergonomically-designed handles and saw head lock

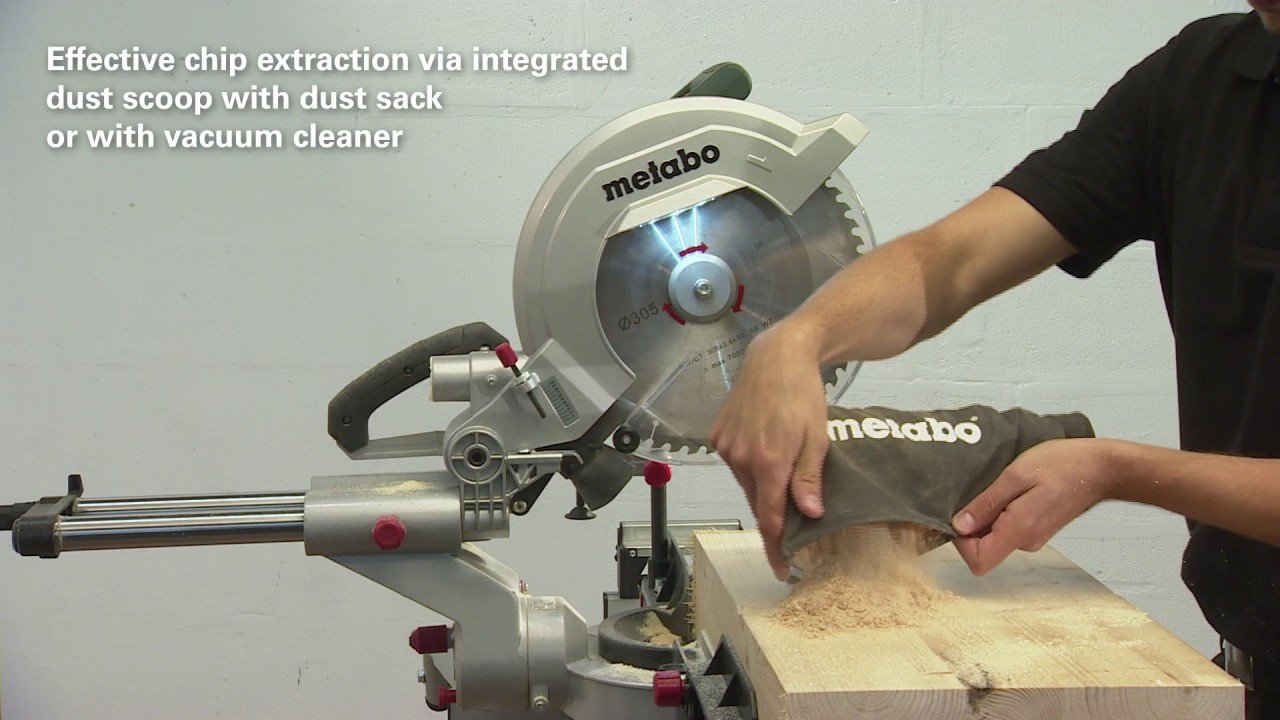

- Effective dust extraction via integrated dust scoop
- Fast and precise setting of common angles using stop points

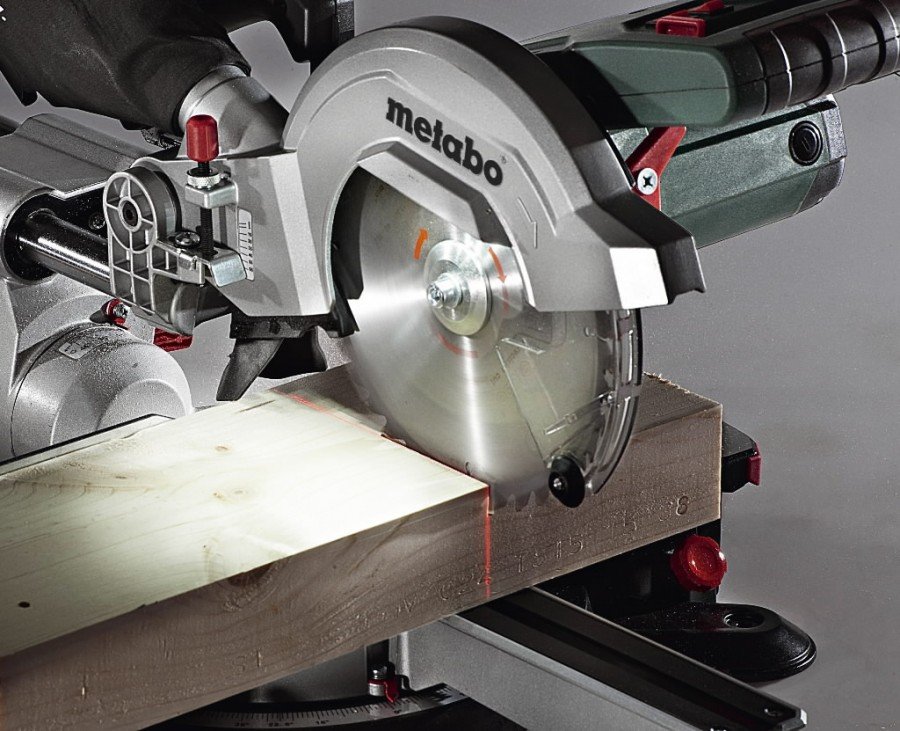

- Laser for exact display of the cutting line (mains powered, no batteries required)
- Adjustable and extendable table width extension, removable to put long panels, slabs etc. underneath
- Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
- Sliding high rear fence profiles for safe sawing
- Material clamp for secure fixing of the work piece from the top or front
- Depth stop for easy creation of grooves
- Saw head can be inclined to the left, with additional angle range for undercuts
- All scales and operating elements are visible from the working position and can be operated intuitively
- Easy saw blade change by means of spindle lock: No dismantling of the pendulum protective cover required
Characteristics
Dimensions
790 x 515 x 515 mm // 2.6 x 1.7 x 1.7 ft
Support surface
340 x 775 mm
Maximum cutting width 90°/45°
305 / 205 mm // 12 / 8 1/16 “
Maximum cutting depth at 90°/45°
92 / 47 mm // 3 5/8 / 1 13/16 “
Cutting capacity 90°/90°
305 x 92 mm // 12 x 3 5/8 “
Cutting capacity 45°/45°
205 x 47 mm // 8 1/16 x 1 27/32 “
Turntable setting left/right
47 / 47 °
Saw blade tilt left/right
47 / 2 °
Saw blade
254 x 30 mm // 10 x 1.181 “
Rated input power S1 100%
1450 W
Rated input power S6 20%
1800 W
No-load speed
4500 rpm
Revolutions at rated load
3150 rpm
Cutting speed
60 m/s // 197 ft/s
Weight
16.3 kg / 36 lbs
Cable length
2 m / 7 ft
Noise emission
Sound pressure level
99 dB(A)
Sound power level (LwA)
106 dB(A)
Uncertainty of measurement K
3 dB(A)
