Description

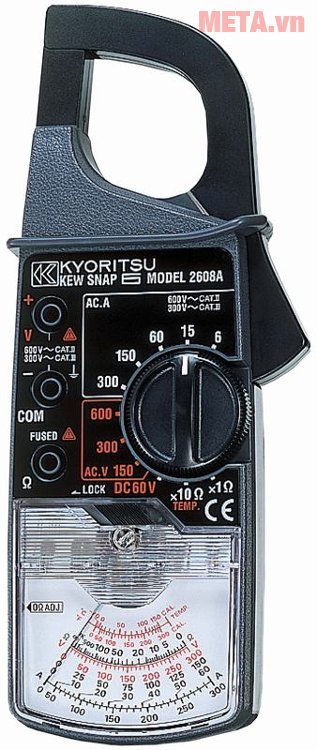

Kyoritsu Analogue Clamp Meter 2608A 600V
Features five functions in one unit. Measures AC current, AC voltage and Resistance, DC voltage, and temperature with the optional temperature probe.
Features
- All five functions in one unit: versatile clamp meter that measures AC current, AC voltage and resistance plus DC voltage and temperature
- Tear drop shaped jaws for ease of use in crowded cable areas
- Safety design throughout, including shielded banana plugs and recessed input terminals
- DC Voltage range especially useful for checking emergency battery operated power supply systems
- Pointer lock device to freeze readings
| AC | |
| Ranges | AC A: 6/15/60/150/300A AC V: 150/300/600V |
| Accuracy | ±3% of FS |
| DC | |
| Range | 60V |
| Accuracy | ±3% of FS |
| Resistance | |
| Range | 1/10k± (25/250Ω mid-scale) |
| Accuracy | ±2% of scale length |
| Temperature | |
| Range | -20 to 150°C (with the use of Temperature Probe 7060) |
| Accuracy | ±5°C (0 to 100°C) ±10°C (Other Ranges) |
| General Specifications | |
| Conductor Size | Ø33mm max. |
| Frequency Response | 50/60Hz |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-031 IEC 61010-2-032 |
| Withstand Voltage | 3700V AC for 1 minute |
| Power Source | R6 AA 1.5V battery |
| Dimensions | 193 x 78 x 39 mm |
| Weight | Approx. 275 g |
- Digital Clamp Meter
- Test Leads
- 2 x 0.5A/600V Fuses
- Carrying Case
- R6 AA Battery
- Instruction Manual
- Country of Origin : Japan
